Examples of ADF Views

These views are taken from the example documentations. More examples can be found there.

The labeling follows the scheme “Name of the view (Type of the view)”.

Content

What2Eat: System Context Diagram (Functions@Runtime)

system-context-example

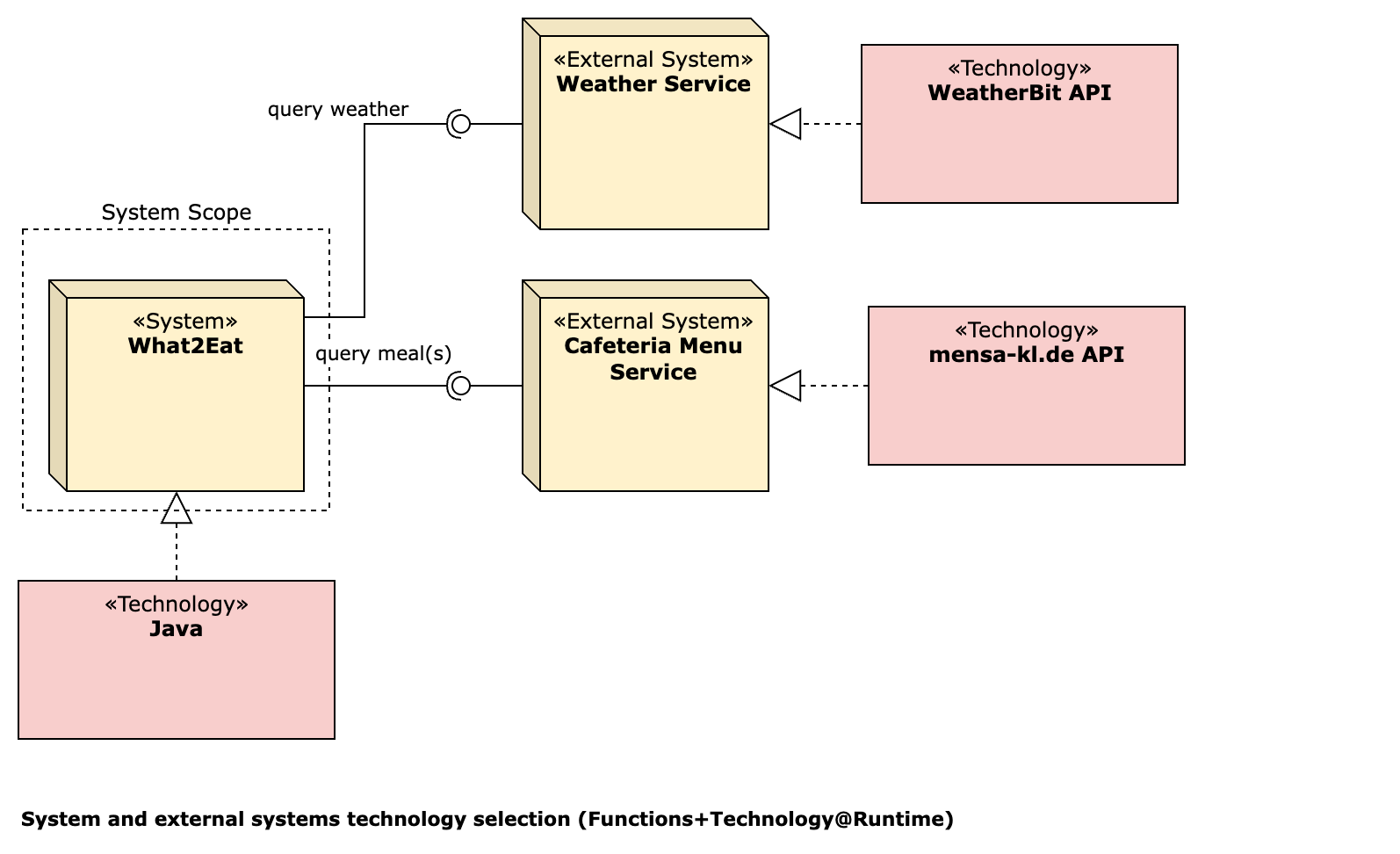

What2Eat: Technology Selection for the Systems (Technology@Runtime)

technology-overview

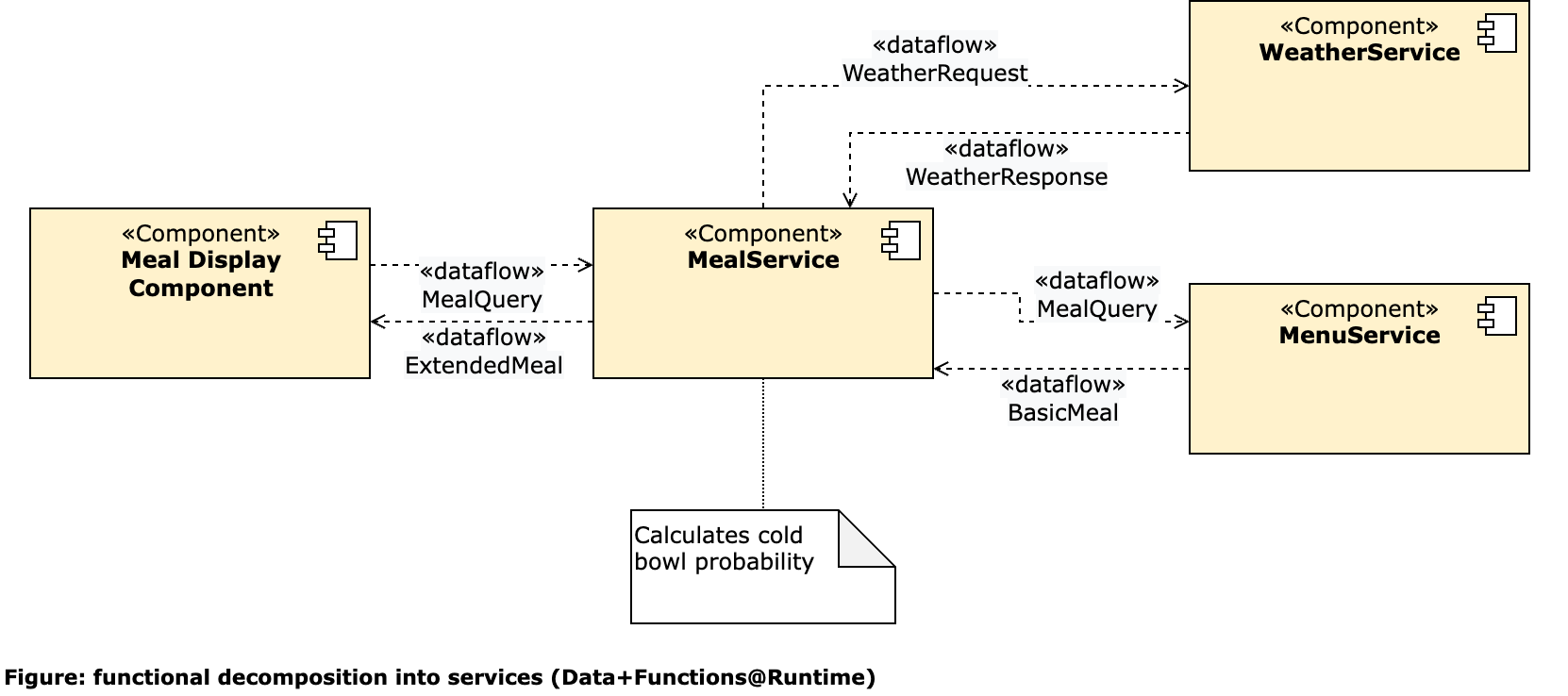

What2Eat: Decomposition into Services (Data+Functions@Runtime)

system-structure

DokChess: Move Search Component (Functions@Runtime)

component

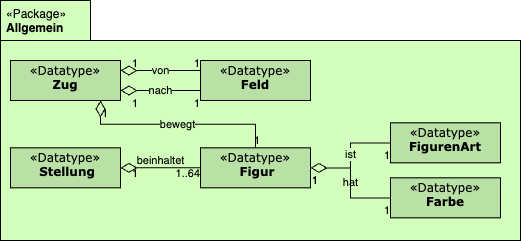

DokChess: Important Data Types (Data@Devtime)

daten

DokChess: Code Structure (Functions@Devtime)

code-struktur

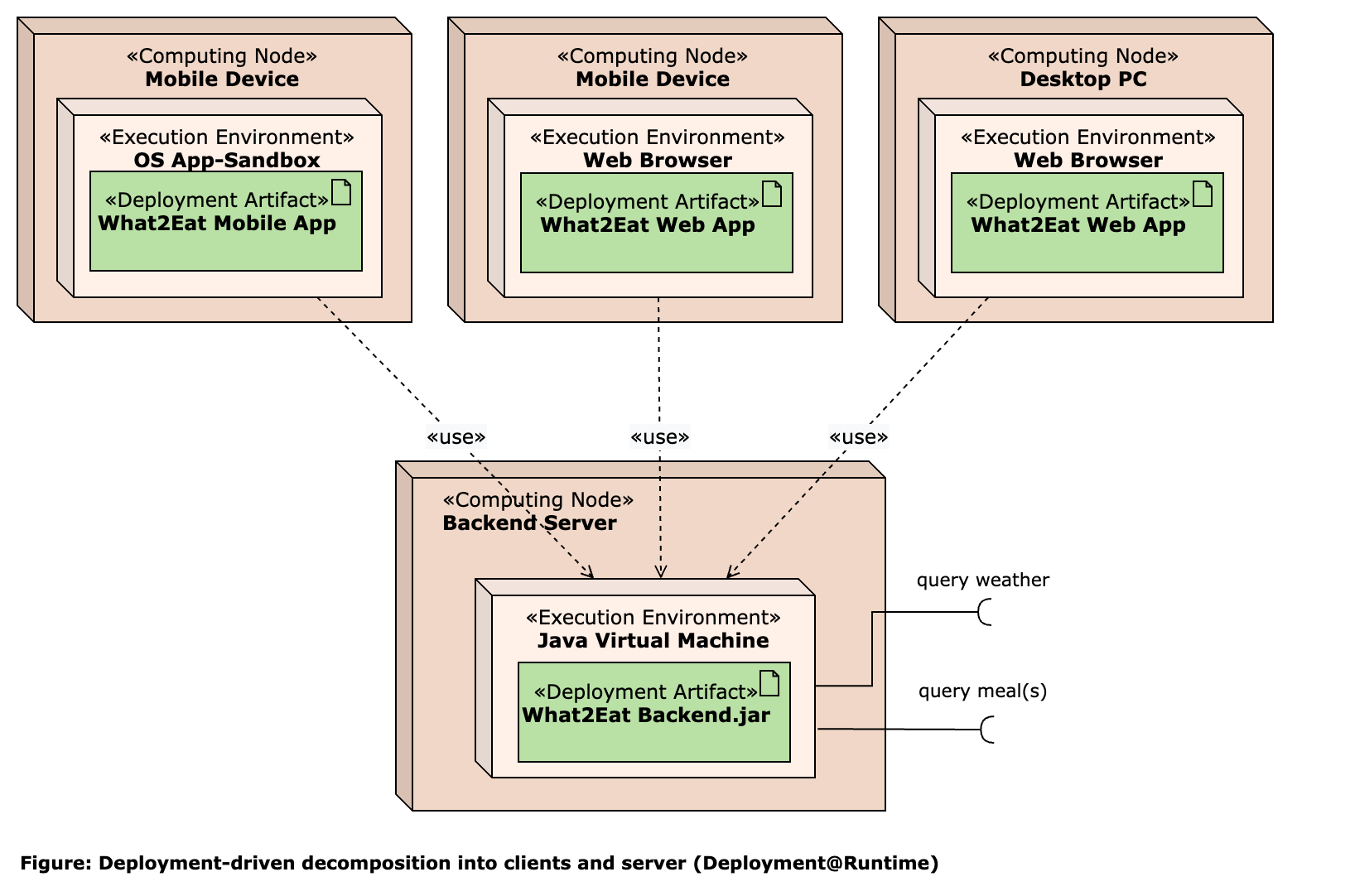

What2Eat: Deployment-Driven Decomposition (Deployment@Runtime)

deployment

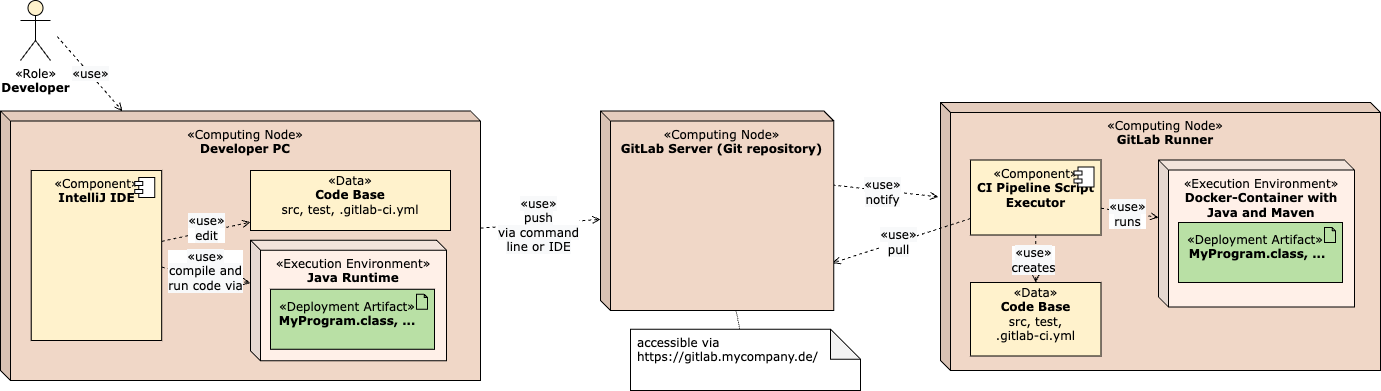

GitLab-CI: Build Process Backend (Deployment+Activities@Devtime)

gitlab-ci

Digital Villages: Many More Examples

The ADF can also be used on the whiteboard. More examples from the “Digital Villages” project can be found in this blog article.
