About the ADF

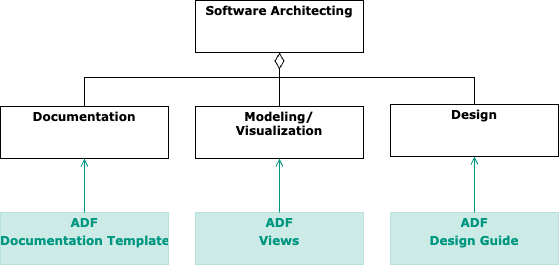

Architecture work (architecture work) encompasses several activities such as documenting (creating an architecture documentation), modeling/visualizing (using diagrams that show views of the system), and designing systems (or parts of them)1.
These activities overlap in content and time. For example, architecture diagrams (visualization) often arise during architecture design and are included in the architecture documentation. This page describes how the Architecture Decomposition Framework supports architecture work.
-
The ADF documentation template provides a sensibly structured outline for an architecture documentation, covering the usual architecture topics and can be easily edited with simple tools (Markdown in a text editor or IDE) → Documentation area.
-
The ADF views offer a system decomposition along various dimensions and define tailored view types and appropriate elements, so that the viewer immediately understands which aspect of a system is being described (similar to how an architect of a house immediately understands what to expect in a floor plan), → Modeling/Visualization area.
-
The ADF design guide provides general guidelines on how to approach architecture design, → Design.
Who uses the ADF?
The ADF has been used in many industrial and research projects from various fields. It originates from the Fraunhofer IESE Institute and is taught at the Fraunhofer Academy, the HTWG Konstanz, and the Hochschule Mannheim.
-
Another activity is architecture review, more on this can be found in the book Pragmatic Evaluation of Software Architectures (J. Knodel, M. Naab)Â ↩
